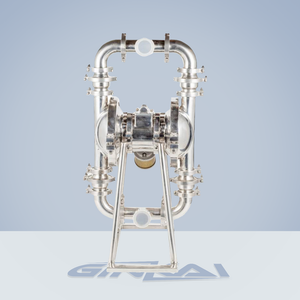

GK 1-1/2" SS Sanitary Pneumatic Diaphragm Pump

Technical Specification Max. Working Pressure 72psi (0.5Mpa,5Bar) 92gpm (350lpm) Max.Reciprocating Speed 200cpm Max. Suction Height (Dry Sucking) 5m Max. Permitted Grain 5mm Max. Air Consumption 28L/s Air Inlet Size 1/2in Air Outlet Size 3/4in Fluid Inlet Size 1 1/2in Fluid Outlet Size 1 1/2in

High Quality

CE Certified

Fast Delivery

ISO

Global Export

Professional Service

Inquire Now View Applications

Pneumatic Sanitary Diaphragm Pump (FDA)

Products

Technical Specification

Max. Working Pressure	72psi (0.5Mpa,5Bar)
Max. Flow Rate	92gpm (350lpm)
Max.Reciprocating Speed	200cpm
Max. Suction Height (Dry Sucking)	5m
Max. Permitted Grain	5mm
Max. Air Consumption	28L/s
Air Inlet Size	1/2in
Air Outlet Size	3/4in
Fluid Inlet Size	1 1/2in
Fluid Outlet Size	1 1/2in

Applications

Wastewater Treatment

Commonly used in the fields of sediment and wastewater treatment. It is recommended to select aluminum alloy, cast iron or PP.

Biomedical Sciences

Commonly used for transporting solid powders, liquid medicines, solvents, etc. It is recommended to choose PP/PVDF/stainless steel.

Oil and Gas Applications

Commonly used in natural gas systems, workover equipment, offshore platforms, sedimentation tank emptying, etc. It is recommended to select stainless steel or aluminum alloy.

Coatings Industry

Commonly used for applications such as adhesive transfer, grouting, handling of viscous materials, and paint filtration. Pump bodies made of aluminum alloy or stainless steel are recommended.

New Energy Industry

Commonly used for conveying cathode slurries, fluorine-containing compounds, and other media. Pump bodies made of PP or PVDF are recommended.

Shipyard & Offshore Engineering

Commonly used for the transfer of seawater, bilge wastewater, fuel oil, and lubricating oil. Pump bodies made of cast iron or stainless steel are recommended.
