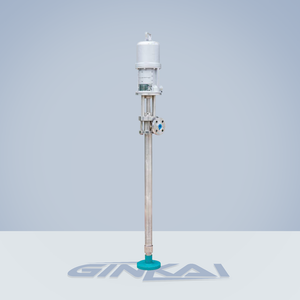

Pneumatic Plunger Piston Pump Ratio 12 :1

Technical Specification 10m 2.5mm 1/2in Fluid Inlet Size 1-1/2in Fluid Outlet Size 1in Connection Type Flange connect
High Quality
CE Certified
Fast Delivery
ISO
Global Export
Professional Service
Inquire Now View Applications
Pneumatic Piston Pump
Products

Technical Specification

Max. Working Pressure9.6Mpa
Max. Flow Rate19 lpm
Max. Suction Height (Dry Sucking)

10m

Transfer Fluid Ratio12:1
Max.Particle Allowed

2.5mm

Max. Air Consumption80scfm(2.2m3/min)
Air Inlet Size

1/2in

Fluid Inlet Size1-1/2in
Fluid Outlet Size1in
Connection TypeFlange connect

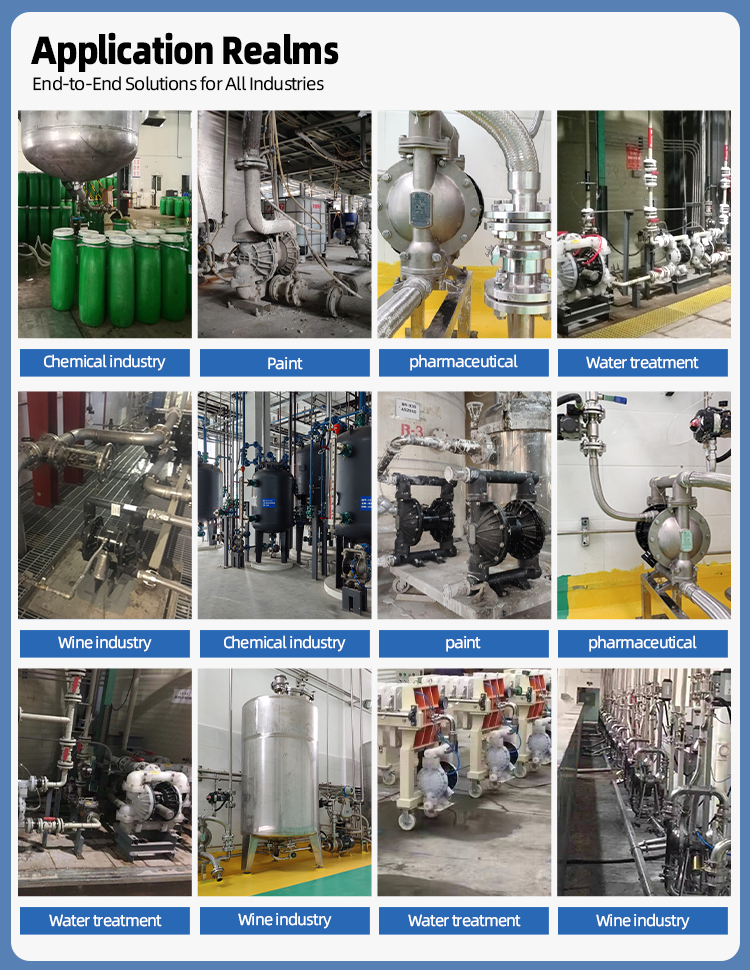

Applications

Wastewater Treatment

Commonly used in the fields of sediment and wastewater treatment. It is recommended to select aluminum alloy, cast iron or PP.

Biomedical Sciences

Commonly used for transporting solid powders, liquid medicines, solvents, etc. It is recommended to choose PP/PVDF/stainless steel.

Oil and Gas Applications

Commonly used in natural gas systems, workover equipment, offshore platforms, sedimentation tank emptying, etc. It is recommended to select stainless steel or aluminum alloy.

Coatings Industry

Commonly used for applications such as adhesive transfer, grouting, handling of viscous materials, and paint filtration. Pump bodies made of aluminum alloy or stainless steel are recommended.

New Energy Industry

Commonly used for conveying cathode slurries, fluorine-containing compounds, and other media. Pump bodies made of PP or PVDF are recommended.

Shipyard & Offshore Engineering

Commonly used for the transfer of seawater, bilge wastewater, fuel oil, and lubricating oil. Pump bodies made of cast iron or stainless steel are recommended.
