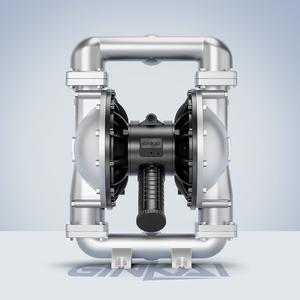

GK 50 Stainless Steel Diaphragm Pump

Technical Specifications PRODUCT SPECIFICATIONS No rotating parts Avoid splashing of chemical liquids Inherently explosion-proof No electronic components, highly safe in chemical environments Self protecting Automatically shuts down when the outlet is blocked Dry running capability The pump can operate without liquid without damage. Strong suction…
High Quality
CE Certified
Fast Delivery
ISO
Global Export
Professional Service
Inquire Now View Applications
Pneumatic Diaphragm Pump
Products

Technical Specifications

Technical Specifications120 psi(0.84Mpa,8.4bar)
Max Flow Rate150 gpm(570 lpm)
Max Reciprocating Speed145 cpm
Max Suction Height (Dry)
5m
Max permitted Grain0.24in. (6mm)
Max Air Consunmption140scfm (70L/s)
Air Inlet Size1/2 in.
Air Outlet Size3/4 in.
Fluid Inlet Size
2 in.
Fluid Outlet Size
2 in.
Weight
Weight

PRODUCT SPECIFICATIONS




No rotating parts

Avoid splashing of chemical liquids

Inherently explosion-proof

No electronic components, highly safe in chemical environments

Self protecting

Automatically shuts down when the outlet is blocked

Dry running capability

The pump can operate without liquid without damage.

Strong suction power

No need to pilot water (suction lift up to 5m)

Good through-pass performance

conveying liquids with high viscosity, particles.

Adjustable flow rate

flow rate can be adjusted easily via air source(between 0.1~0.84 MPa).

Simple structure with low maintenance costs

Parts can be replaced quickly and conveniently.

Self protecting

Automatically shuts down when the outlet is blocked



Applications

Wastewater Treatment

Commonly used in the fields of sediment and wastewater treatment. It is recommended to select aluminum alloy, cast iron or PP.

Biomedical Sciences

Commonly used for transporting solid powders, liquid medicines, solvents, etc. It is recommended to choose PP/PVDF/stainless steel.

Oil and Gas Applications

Commonly used in natural gas systems, workover equipment, offshore platforms, sedimentation tank emptying, etc. It is recommended to select stainless steel or aluminum alloy.

Coatings Industry

Commonly used for applications such as adhesive transfer, grouting, handling of viscous materials, and paint filtration. Pump bodies made of aluminum alloy or stainless steel are recommended.

New Energy Industry

Commonly used for conveying cathode slurries, fluorine-containing compounds, and other media. Pump bodies made of PP or PVDF are recommended.

Shipyard & Offshore Engineering

Commonly used for the transfer of seawater, bilge wastewater, fuel oil, and lubricating oil. Pump bodies made of cast iron or stainless steel are recommended.
